Aluminium sheet Rolling shutter Box with integrated insect screen | Model 45°
Aluminium sheet Rolling shutter Box with vertical insect screen | Model 45°

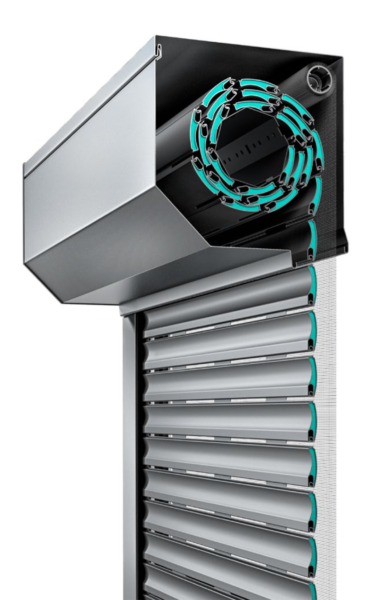

The NEW 45° externally mounted aluminium rolling shutter box system, allows the installation of a vertical insect screen inside the box. This saves valuable space between the rolling shutter and the window frame, which often is not sufficient for installing a vertical insect screen system.
Operation:
The rolling shutter can be operated with a strap, cord, crank handle, or electric motor.
Available Dimensions:
In the case of the box Model 45° with an integrated insect screen, the internal diameter (Φ) varies depending on the box size, compared to the conventional Model 45° box.
Construction / Installation:
For the construction and installation of the box system with an integrated vertical insect screen, the following additional components, designed by VIOMAL, are required:

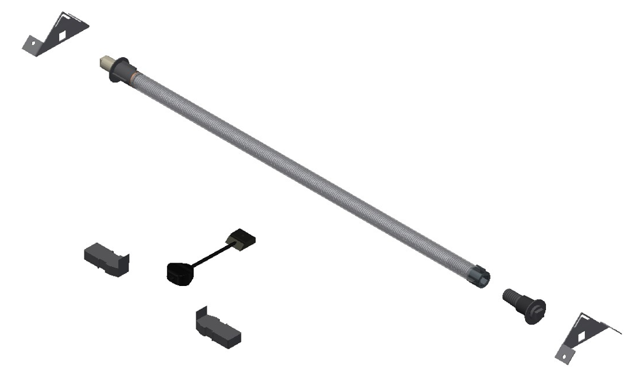

1) Spring KIT (20.60.0018) that is fitted onto the shaft
It is then placed into the square slot located either on the metal plate or on the metal base (secured with a screw in the special mounting points on the box side panels).
2) Double entry guide: White (20.03.1486) or Black (20.03.1487), installed onto the aluminium Double guide for rolling shutter and insect screen (20.03.1488).

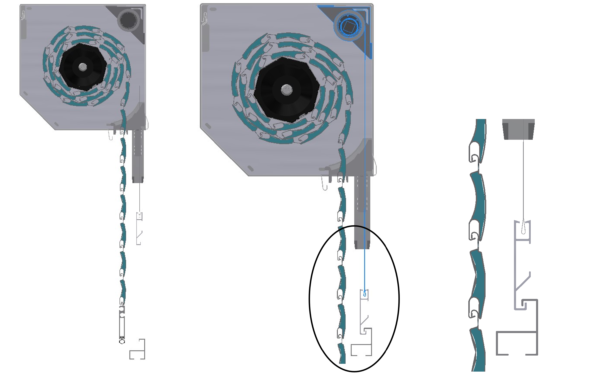

3) Aluminium Terminal profile with new stopper
