Extruded Slats

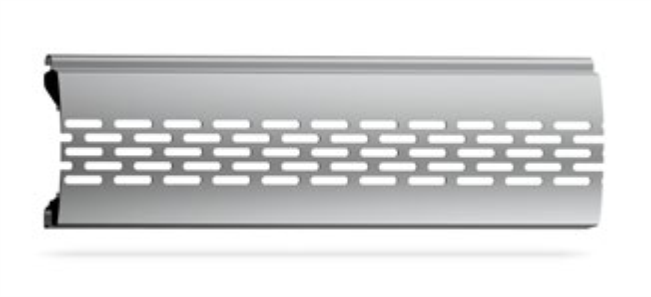

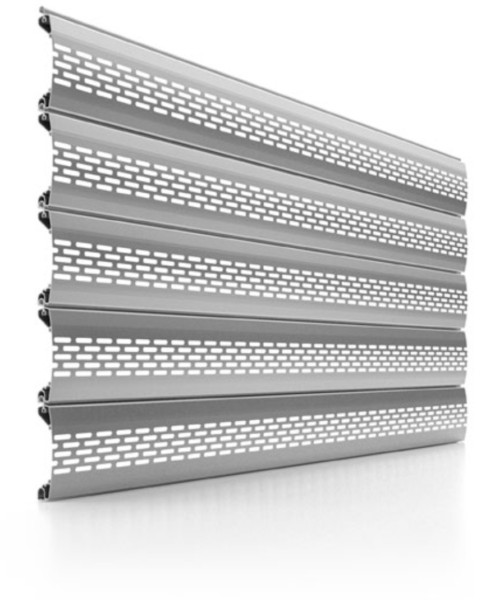

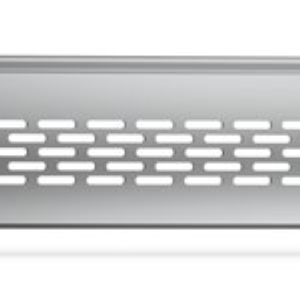

Extruded ventilation profile XR77 Venti



Extruded Aluminium ventilation profile for garage doors.

Ideal for residential and commercial use.



Can be combined withslat H77, XR77, XR77 Venti
Length5,00m & 5,8 meters

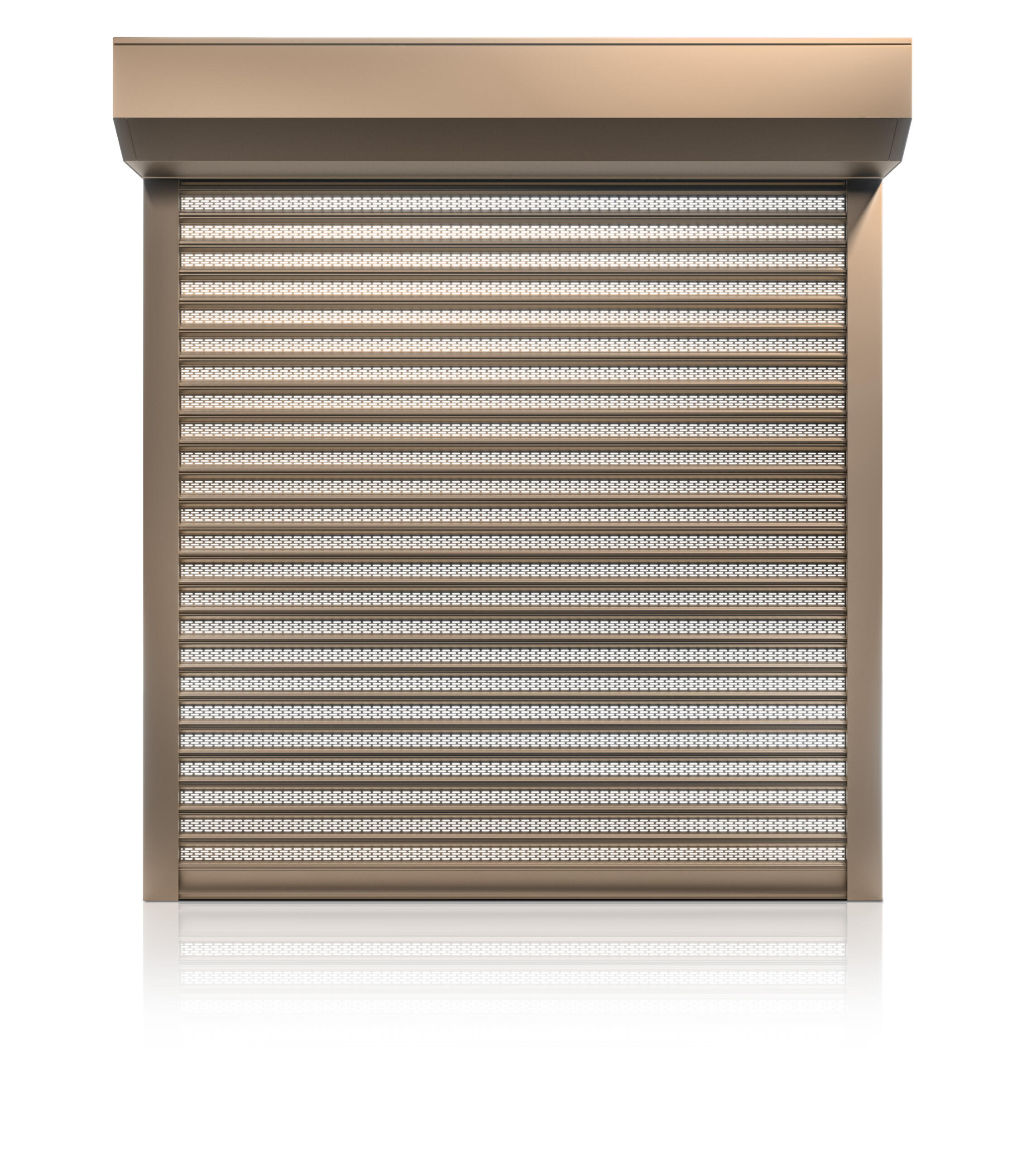

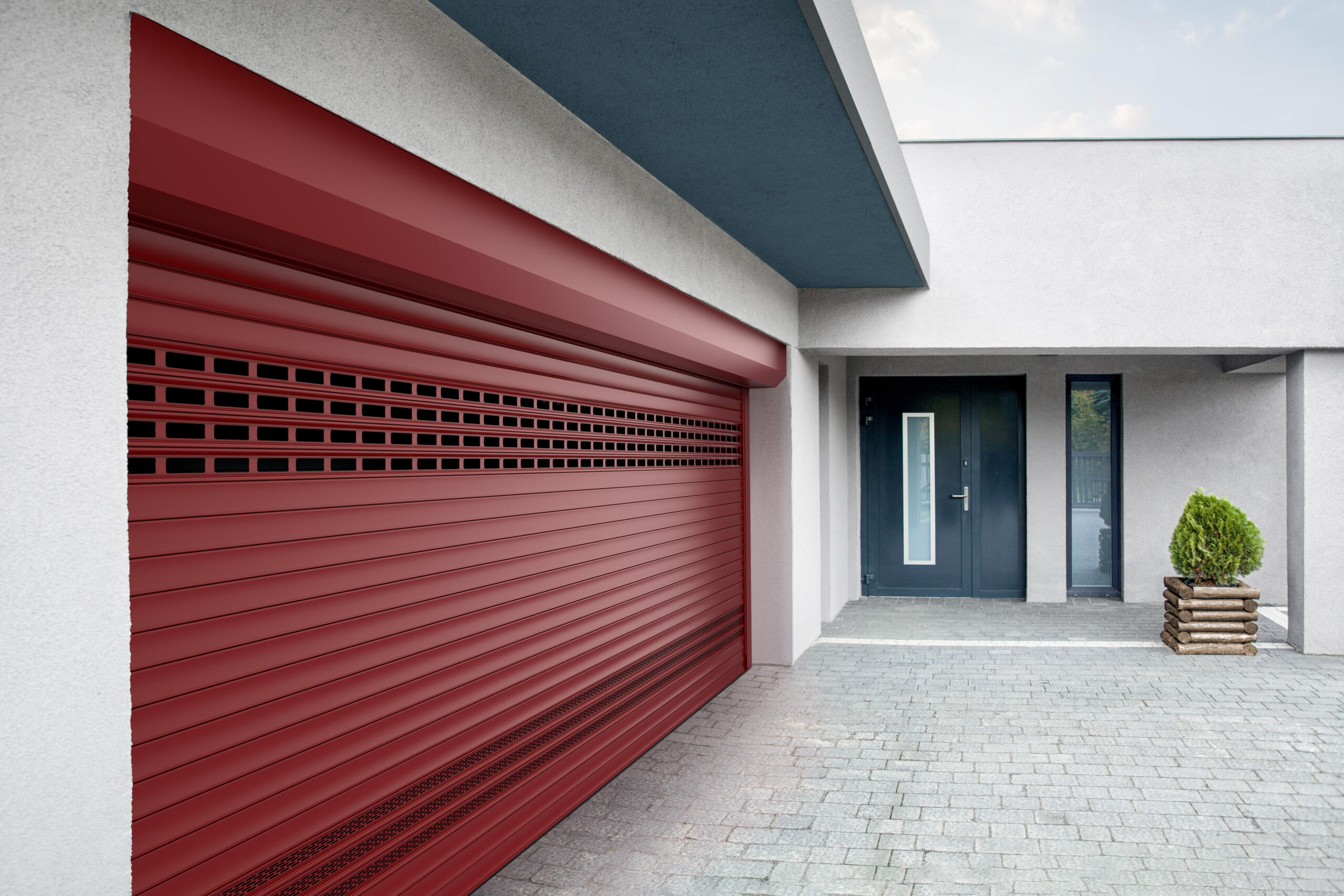

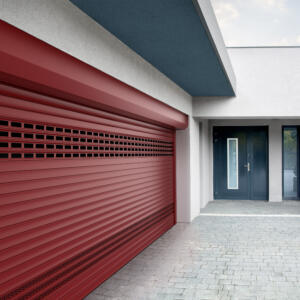

RemarksInstalled in the middle of a garage door, combined with H77 or XR77 and XR77 Vision profile
Est.weight

0,491 Kgr/m (mill finish)

6,37 Kgr/m2

* The above weights are for mill finish product.

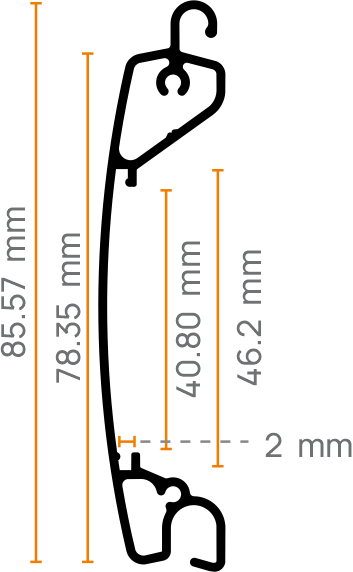

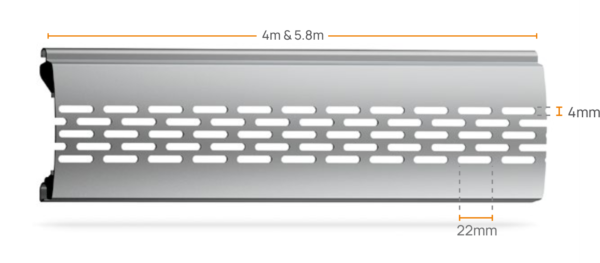

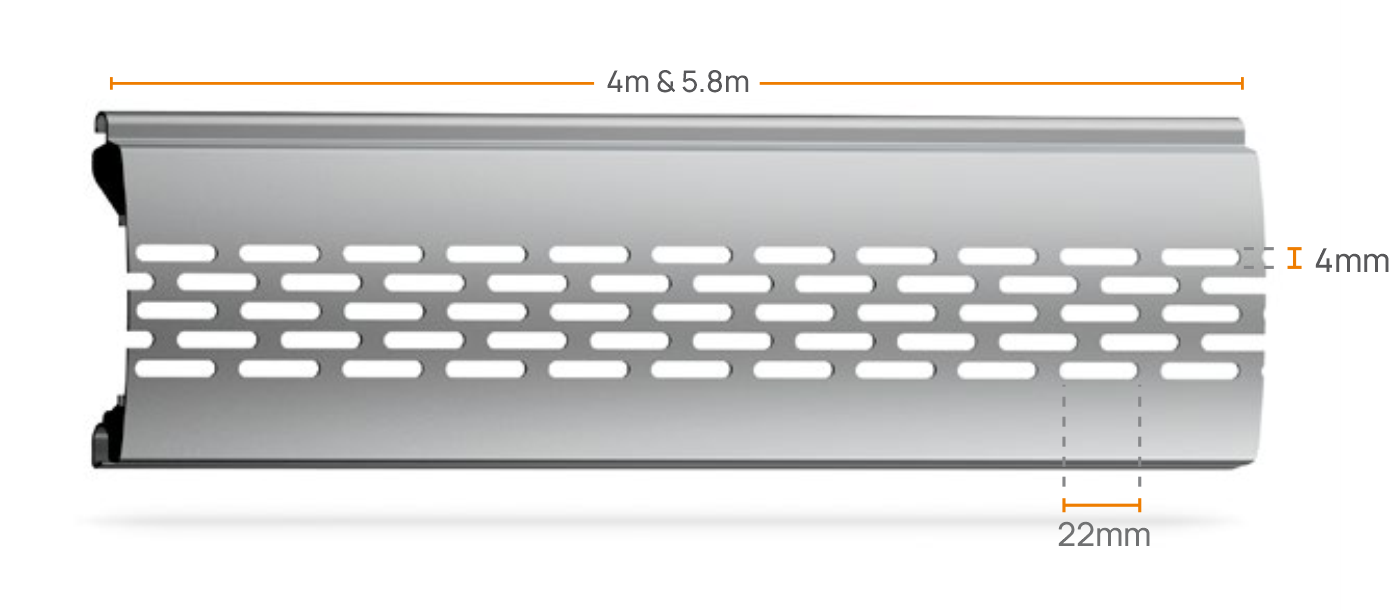

Technical Diagrams
