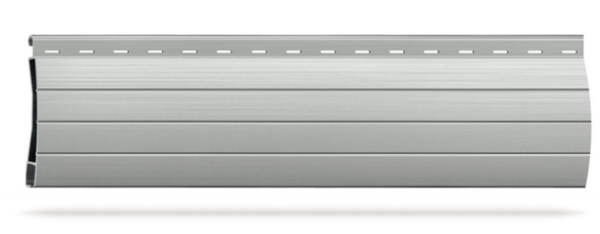

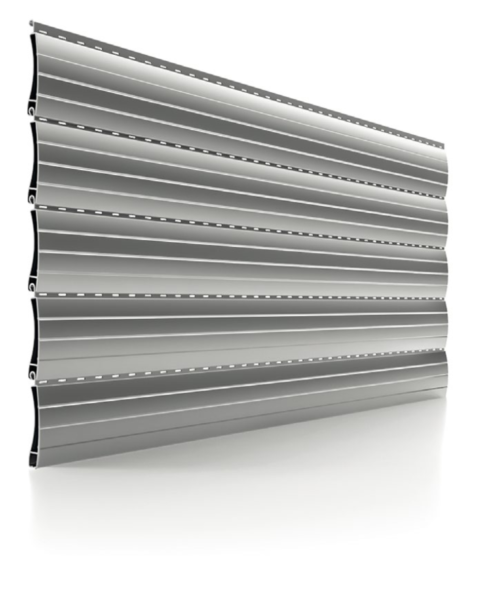

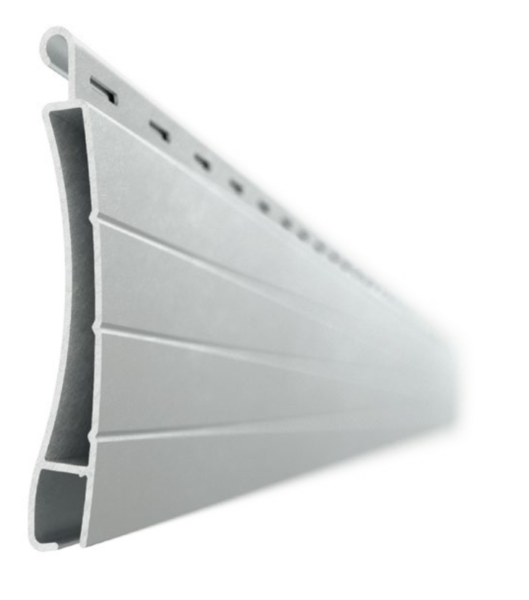

Extruded Profile XR43

XR43 is an extruded aluminium slat with increased rigidity, providing effective protection and shading.

Technical Characteristics

Weight0,240 kgr/m
Weight per sq.m5,60 kgr/m2
Production length6,00 m
Slats per meter23,30 τεμ/m
Maximum width3,50m

* The above weights are for mill finish product.

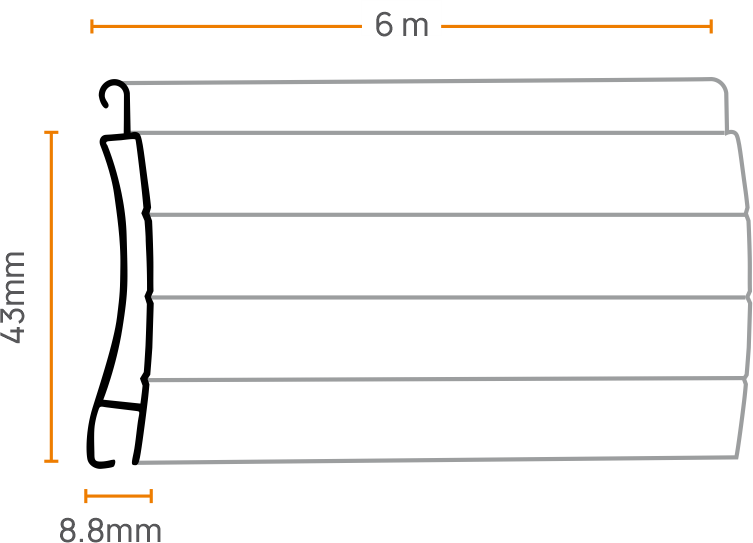

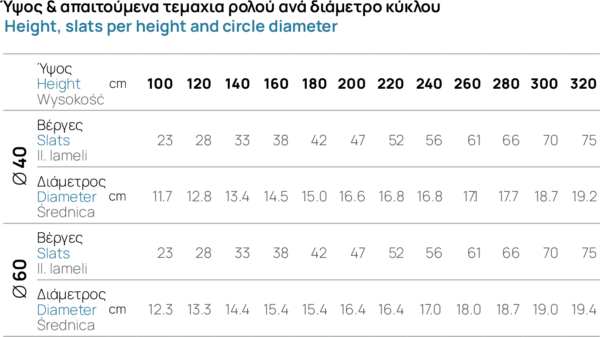

Technical Diagrams
