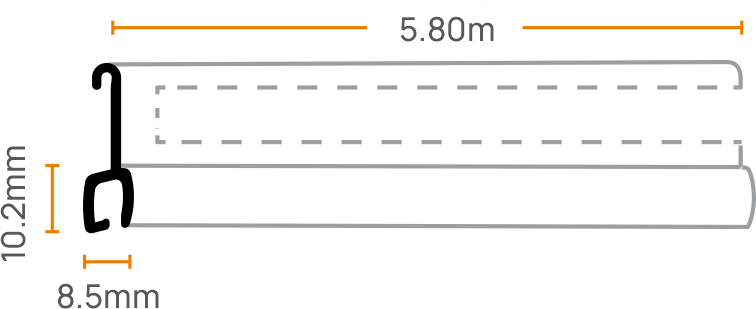

Extruded Profile XR10/63

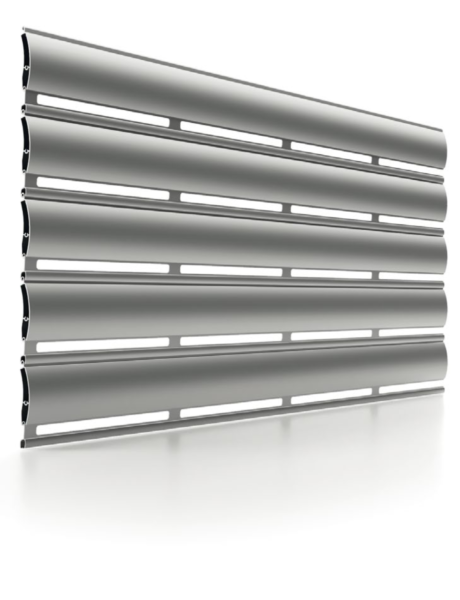

XR10|63 is a system of aluminium extruded slats suitable for large openings, providing maximum ventilation and natural light.

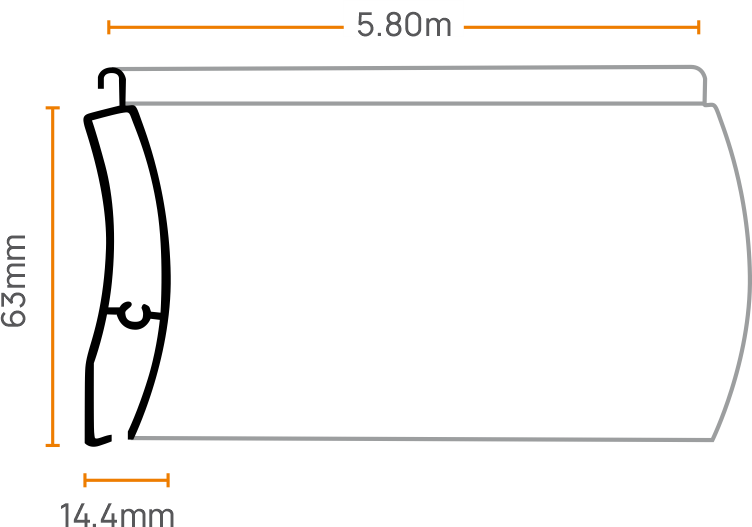

| Technical Specifications | |
| Weight | 0,693 kgr/m |
| Weight per sq.m | 9,50 kgr/m2 |
| Production length | 5,80 m |
| Slats per meter | 14 τεμ/m |
| Ventilation per sq.m | 11% |
| Maximum width | 5,00 m |
* The above weights are for mill finish product.

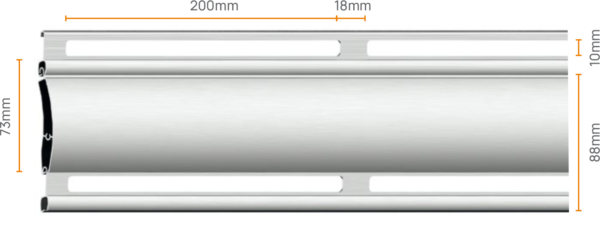

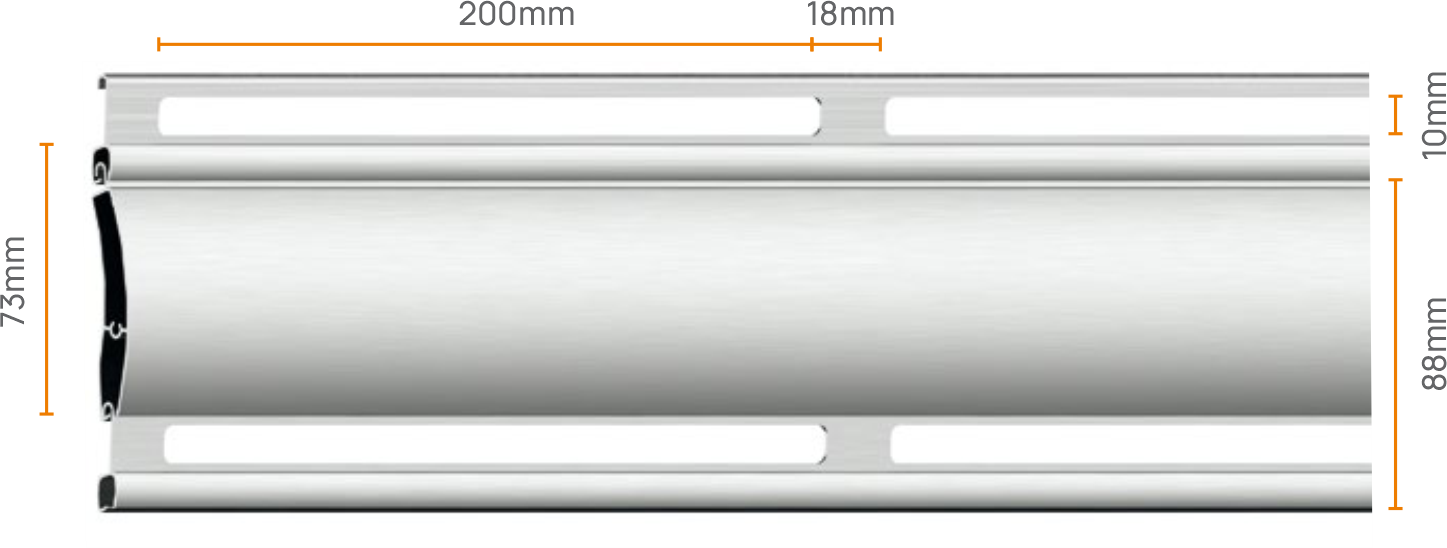

* For the manufacturing of rolling shutters, profiles XR63 can be used independently, without the small profile XR10
