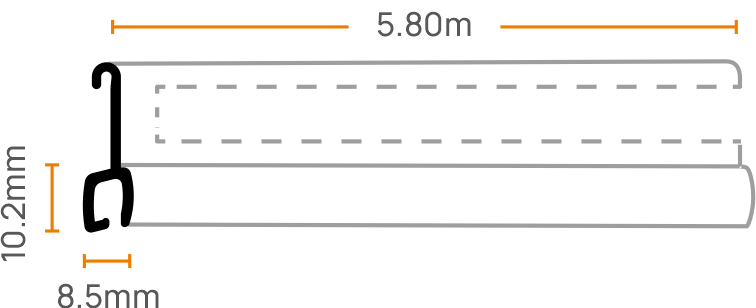

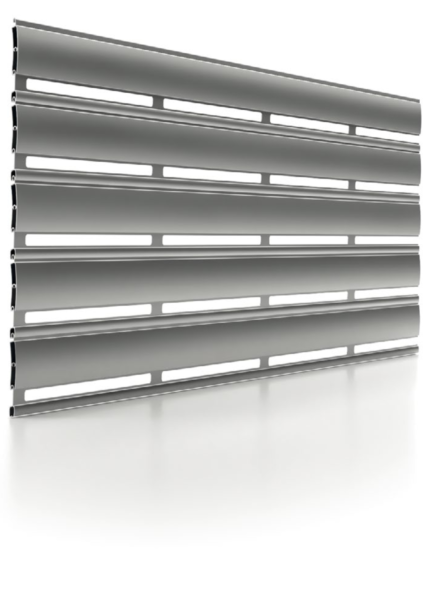

Extruded Profile XR10/45

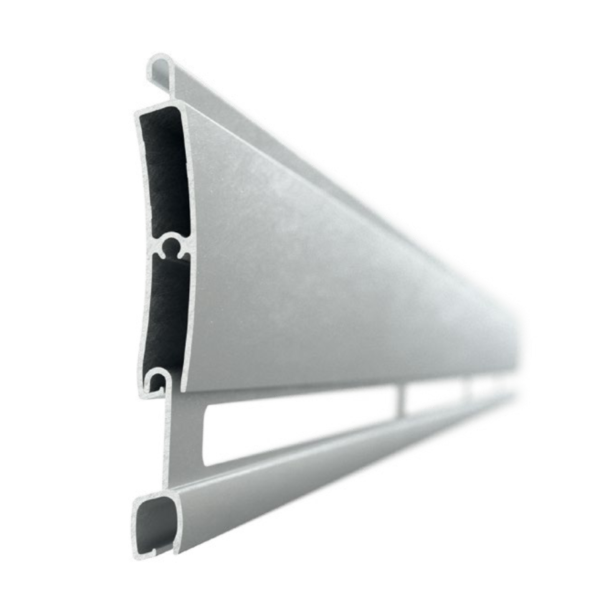

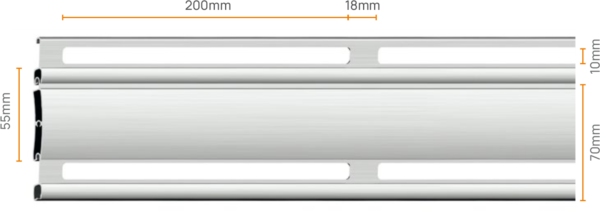

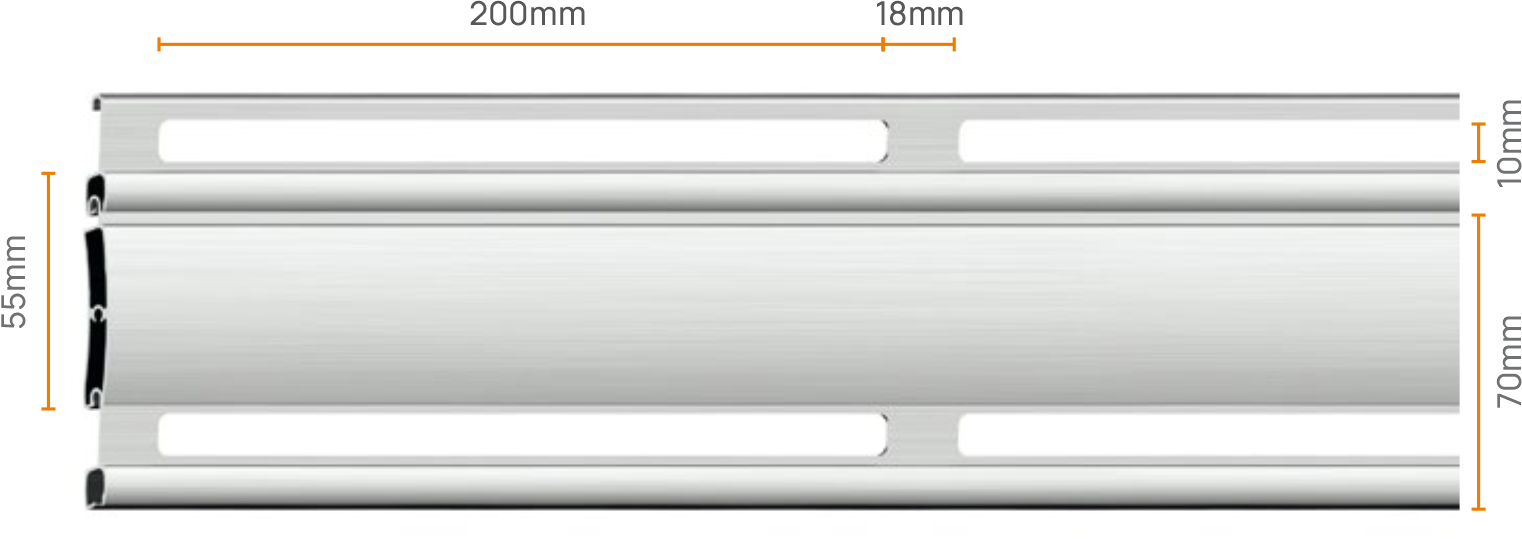

XR10-45 is an upgraded system of aluminium extruded slats, suitable for large openings, providing maximum ventilation and natural light.
| Technical Specifications | |
| Weight | 0,490 kgr/m |
| Weight per sq.m | 8,90 kgr/m2 |
| Production length | 5,80 m |
| Slats per meter | 18,18 τεμ/m |
| Ventilation per sq.m | 13% |
| Μaximum width | 4,00 m |
* The above weights are for mill finish product.

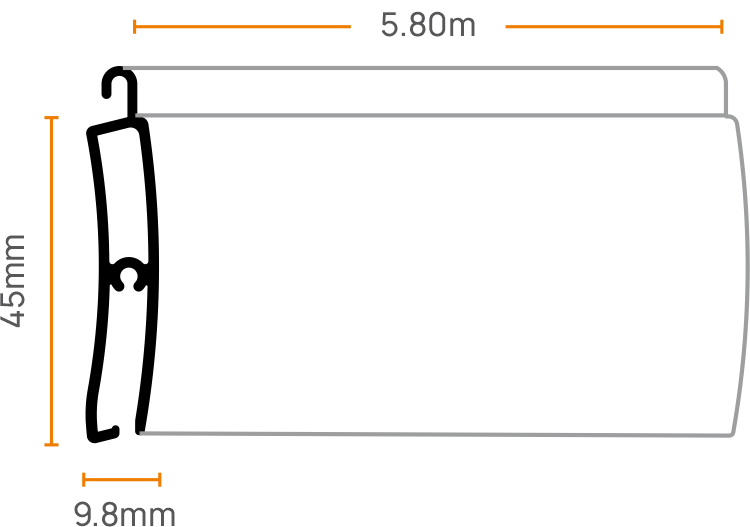

* For the manufacturing of rolling shutters, profiles XR45 can be used independently, without the small profile XR10
