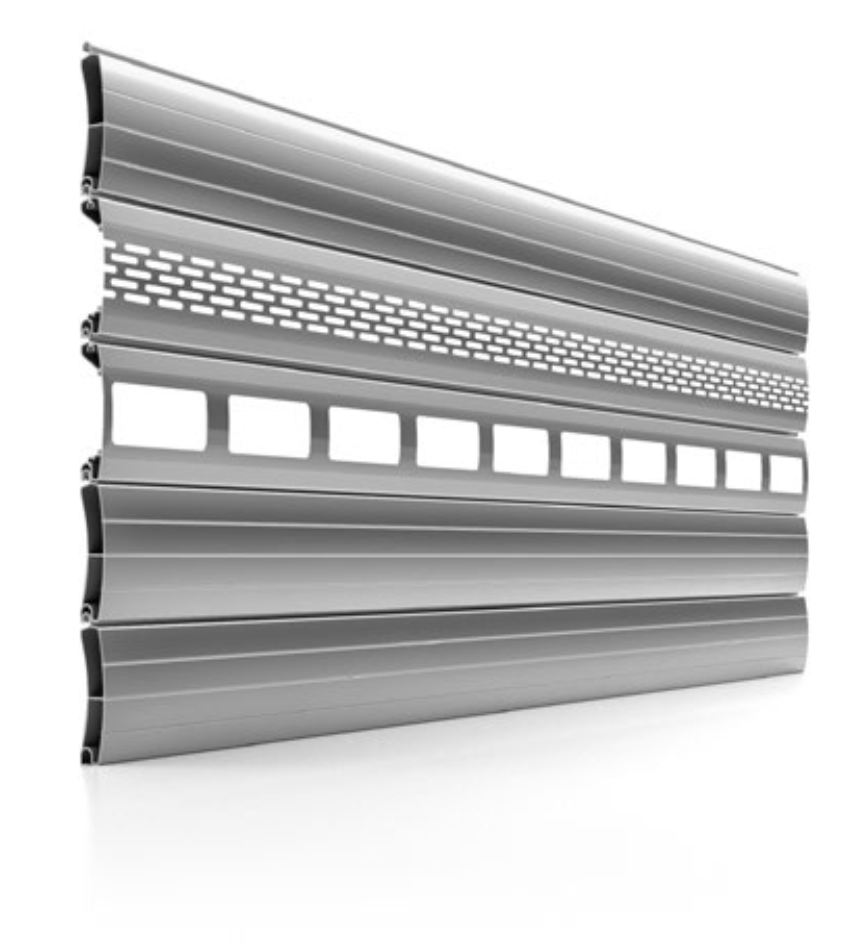

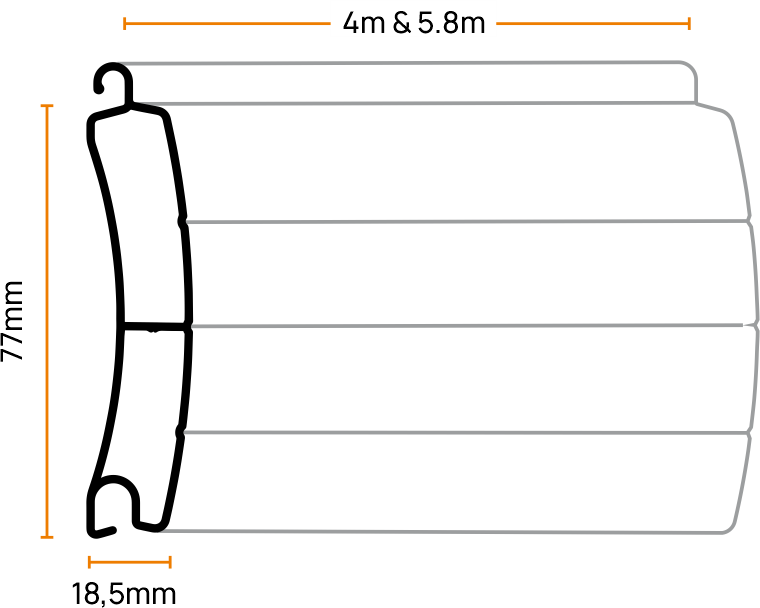

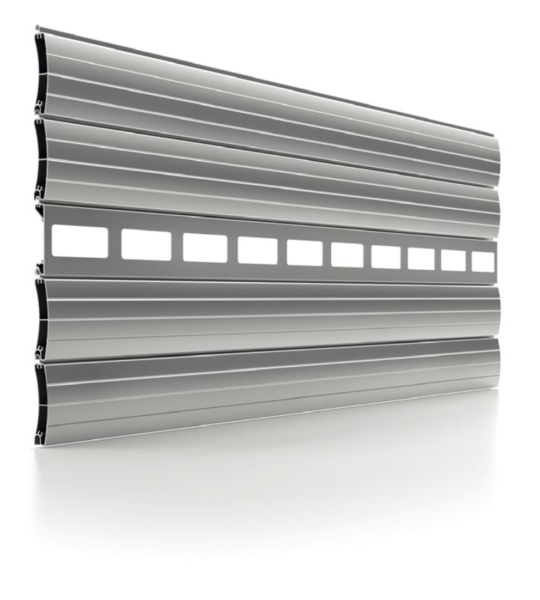

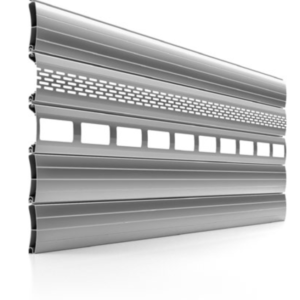

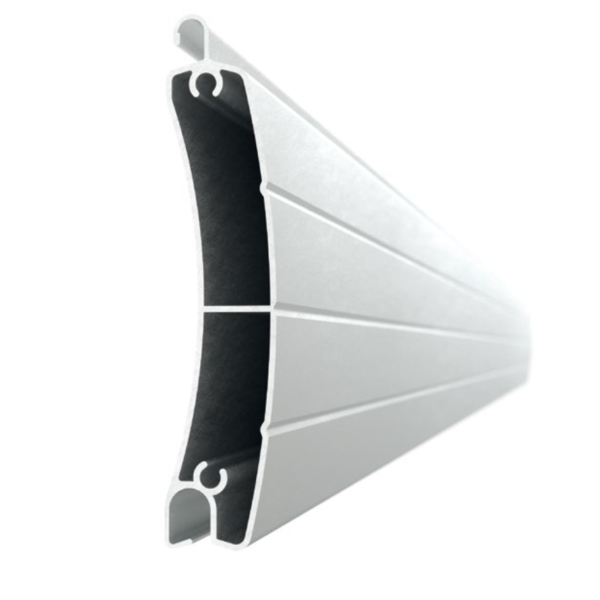

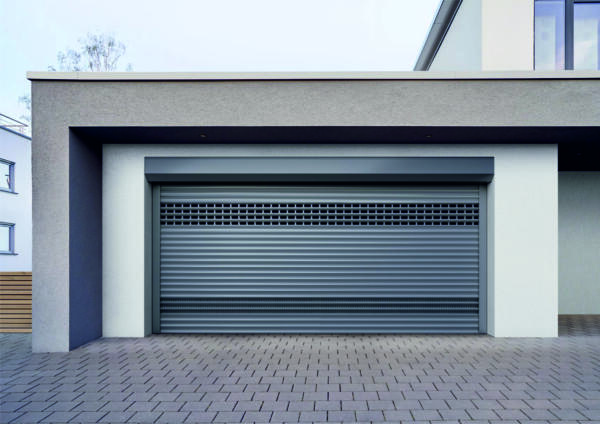

The E77 is an extruded aluminium slat with maximum rigidity for garage doors.
| Technical Specifications | |
| Weight | 0,694 kgr/m |
| Weight per sq.m | 9,01 kgr/m2 |
| Production length | 6,00 m |
| Slats per meter | 12,90 pcs/m |
* The above weights are for mill finish product.

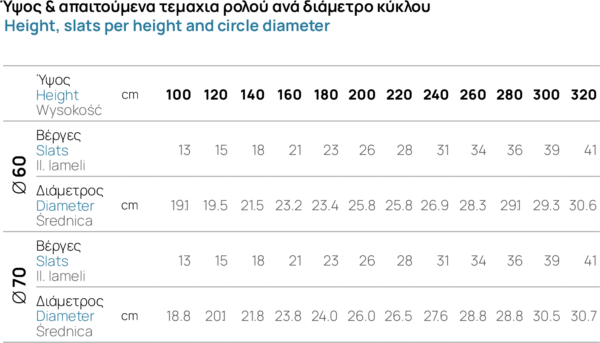

| Height, slats per height and circle diameter | ||||||||||||||||||||||||
Extruded Shutter | Height (cm) | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | |||||||||||
E77b | Φ40 | Slats | 13,0 | 15,6 | 18,2 | 20,8 | 23,4 | 26,0 | 28,6 | 31,2 | 33,8 | 36,4 | 39,0 | 41,6 | ||||||||||
| Diam. (cm) | 19,1 | 19,5 | 21,5 | 23,2 | 23,4 | 25,8 | 25,8 | 26,9 | 28,3 | 29,1 | 29,3 | 30,6 | ||||||||||||
| Φ60 | Slats | 13,0 | 15,6 | 18,2 | 20,8 | 23,4 | 26,0 | 28,6 | 31,2 | 33,8 | 36,4 | 39,0 | 41,6 | |||||||||||
| Diam. (cm) | 18,8 | 20,1 | 21,8 | 23,8 | 24,0 | 26,0 | 26,5 | 27,6 | 28,8 | 28,8 | 30,5 | 30,7 | ||||||||||||
* All information details are subject to change without prior notice.
